Vertical Probing System
Features
  • Probe compatibility: DVT40 and Wafer probes
  • Differential and Single-Ended probes
  • Upgrades Horizontal to a Vertical Probe System
  • Fits on most lab tables or carts
  • High Quality Steel Components
  • Configure Single or Dual Probe Systems
  • Easily store components to free up lab space

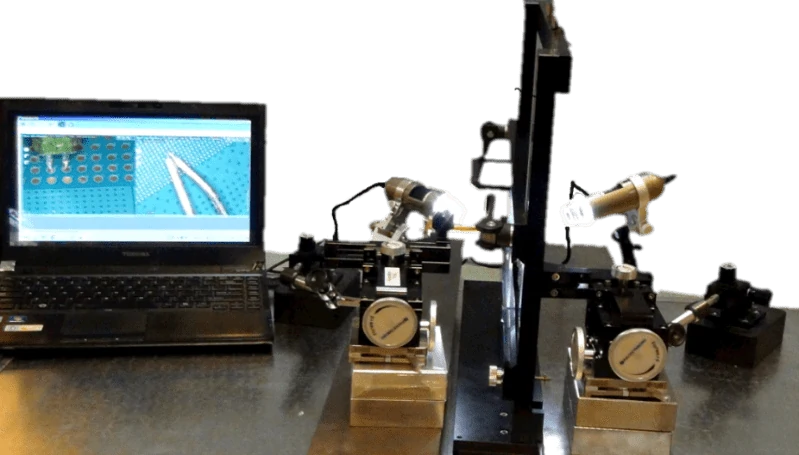

To construct a vertical probe station, choose from the four Vertical Test Fixtures described below, the one with the dimensions that best fit the range of test board sizes to be probed on both sides. The DVT-FP250 probe positioner is recommended for positioning the probe because it can probe both vertical and horizontal boards. The high-speed XYZ position controls quickly move the probe to the test pads to reduce test time. We use high-resolution cameras connected to multi-axis lockable arms to position the camera image showing where the probe tips need to be placed. Select the DVT-CS-3 camera system with a two-axis lockable arm for boards up to 5 in (12.7 cm) tall or use the DVT-CS-1 camera system for boards up to 12 in (30.48 cm) tall. The DVT-CS-1 has a longer four-axis control arm to best view probing locations with awkward probing angles. Use the DVT-FP100-NN Magnetic Blocks and DVT-PB100-24 Probe Bridge to raise the probe and camera systems to probe taller vertically mounted test boards.
DVT-VPH100 Vertical Test Fixture
The DVT-VPH100 holds a printed circuit board (PCB) vertically for double-sided probing applications. Its upper bar has a quick release mechanism that allows a user to easily mount and dismount a PCB from the holder. By loosening the adjustment screws, the lower bar can move up and down in 9 small steps (1 cm (.39 in)/step) to set the PCB in the appropriate height for ease of testing. It is available in two sizes, the DVT-VPH100-10 (for PCBs up to 10 inches (25.4 cm) wide) and the DVT-VPH100-18 (for PCBs up to 18 inches (45.72 cm) wide).
DVT-VPH100-10
DVT-VPH100-10 Specifications
Size
(WHD) 15.8x15.8x4 in (40x40x10 cm)
Weight
18.3 lbs (8.3 Kg)
Base
Steel with magnets at bottom
Board Size
Height: 1.8 to 10 in (4.6 to 25 cm) Width: Unlimited
DVT-VPH100-18 Specifications
Size
(WHD) 15.8x23.8x4 in (40x60x10 cm)
Weight
18.3 lbs (8.3 Kg)
Base
Steel with magnets at bottom
Board Size
Height: 2 to 18 in (5.1 to 46 cm) Width: Unlimited
DVT-PHA01
The DVT-PHA01 Adjustable Test Fixture is used to hold device packages or PCBs with sizes ranging from .19 to 1.96 in (5 to 50 mm) while probing. Place the PCB within the DVT-PHA01 fixture and then install the fixture in any of the vertical or horizontal test fixtures for added capability to test large and small PCBs.
DVT-PHA01 installed in the DVT-VPH100-10 fixture
DVT-BP100-24 Probe Bridge
DB-PB100-24 Probe Bridge Contents
1 – 24" x 4" x .25" DVT-PB100-24 Bridge Platen2 – 4" x 3" x 2" DVT-FP100-2IN Magnetic Bases2 – 4" x 3" x 1" DVT-FP100-1IN Magnetic Bases2 – 4.3" x 3.3" x 0.2" Plates
The DVT-PB100-24 Probe Bridge extends a probe's reach into the board to be probed and is useful for probing boards larger than 5x5 inches (12.7 x 12.7 cm). Place a Probe Bridge on one end of the test board, and as necessary, place another on the long side of the board to probe into anywhere on a large test board. The Probe Bridge comes with two 1-inch (2.54 cm) and two 2-inch (5.08 cm) stackable steel magnetic blocks for a total height of 3 inches (7.62 cm). Place the probe and the camera positioners on top of the bridge as needed. Push a test board mounted to our DVT-SM Holders under the bridge until the probe tips line up with the test pads to be probed. The challenge of probing vertical boards is placing the probe positioner so the probes can reach up to probe the test pads on the highest points on the board. The DVT-FP250 with its arm in the vertical position can reach to probe up to 5 in (12.7 cm), but this may sometimes be insufficient. The probing location can be several inches longer than the probe arm and the camera system must be raised to view the same location where the probe is to be placed. To raise the probe and camera positioners place them on the 24 x 4 inch DVT-PB100-24 probe bridge, then place the bridge at the base of the vertical fixture containing the test board. The Probe Bridge containing the camera and probe positioners can be raised to the required probing height by placing one or more stackable Magnetic Bases under each end of the probe bridge. To probe the board from the side, place a DVT-PB100-24 probe bridge vertically next to the vertical test fixture. To secure it vertically on the table, sandwich the probe bridge between two 2” magnetic blocks that securely make contact with the lab table. Carefully attach the DVT-250 probe positioner to the vertical mounted probe bridge using its quick release magnetic base switch. Use DVT-FP100-XX Magnetic Bases as needed to raise individual camera or probe positioners. The system can be upgraded to accommodate different size boards and the individual components can be stored in a locked cabinet to free desk space.
DVT-FP100-NN Magnetic Bases
DVT-FP100-1N1 in (2.54 cm)
DVT-FP100-1.5N1.5 in (3.81 cm)
DVT-FP100-2N2 in (5.08 cm)
Use one or more stackable Magnetic Steel Blocks to place under any of the Probe or Camera Positioners to raise the probing height of the instrument, so the probe clears the top of the test board, or to raise the position of the camera.

Download Datasheet

View Application Demos

Vertical Probing with the DVT-FP250 Probe Positioner youtu.be/xNW0e9Hb_bA
