DVT-FP100 Flex Positioner
Quick, Steady and Accurate Hands-Free Probing

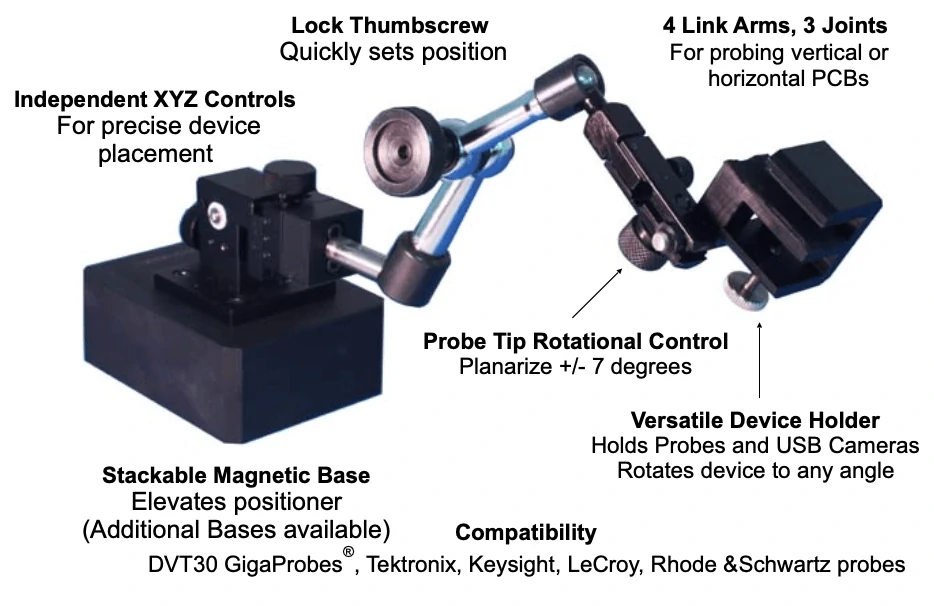

Features
  • Easy-to-manipulate arm, controlled by a single thumbscrew
  • Independent XYZ stage for fine adjustments of probe position
  • Versatile, sturdy probe holder
  • Flexible, long arm for vertical or horizontal probing
  • Flexible enough for setting up multiple probes to view glitches or Infrequent errors
Specifications
  • Articulated arm: 4 links and 3 joints controlled by a single thumbscrew
  • Arm Length: 220 mm/8.7 in
  • XYZ-axis travel: 12 mm (200 μm/revolution)
  • Pitch – axis rotation: +/- 7.5 degrees
  • Width: 76 mm/3.0 in
  • Height: 90 mm/3.5 in
  • Base Length: 101 mm/4.0 in
  • Weight: 3,556 grams/125.4 oz (Magnetic Base: 109 oz)
  • Base: Stainless steel with magnets at bottom
  • Universal camera or probe holder
  • (Optional) Dina-lite camera holder
